LeadLined Door Specifications: What Architects And Contractors Need To Know

Small specification mistakes routinely cause delays, change orders, failed inspections, and expensive rework after construction has already begun. Missing lead equivalency on the door schedule, standard frames paired with shielded doors, vision panels without safety glassthese are common errors that can send a leadlined door project back to the drawing board, sometimes after walls are already closed.

A leadlined door is a complete radiationshielding assembly, not merely a leadcovered slab. Many project stakeholders misunderstand that the door and its frame must match in lead equivalency. Installing a properly shielded door within an unlined frame creates a critical radiation leak point along the door jamb, which will almost certainly fail local radiationsafety inspection.

Before selecting any leadlined door, project teams should obtain a shielding physicist report. This official document defines required lead equivalency values for doors, windows, walls and ceilings according to the Xray, CT or fluoroscopy equipment installed inside the room. Lead thickness cannot be guessed by architects or contractors; it must be calculated by a qualified radiationprotection physicist.

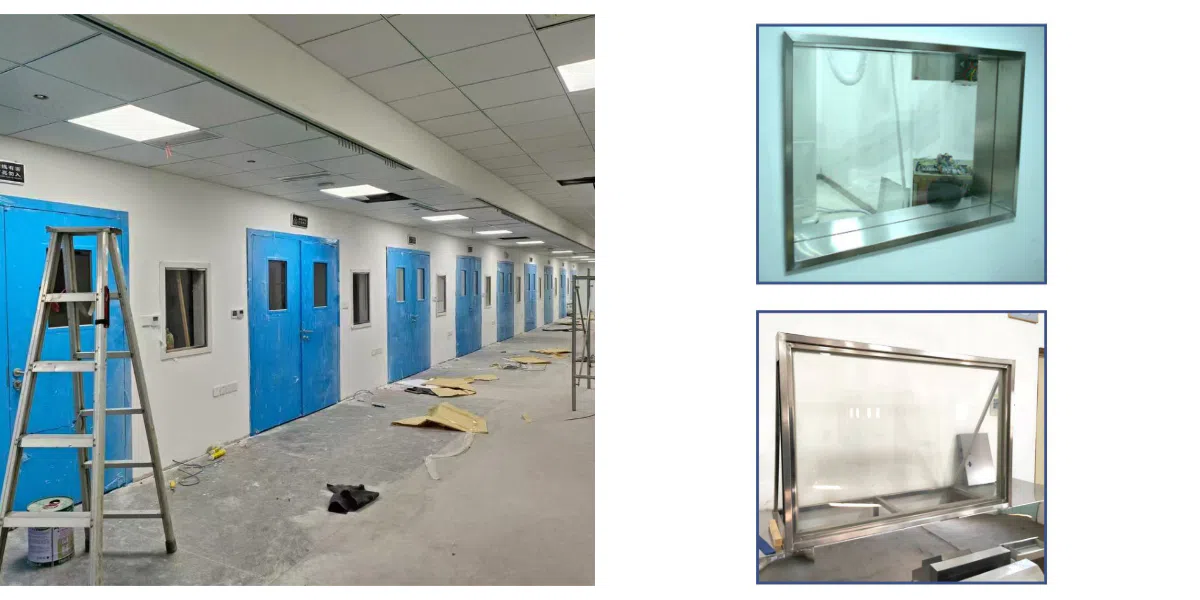

Vision panels are another frequent source of error. All viewing windows fitted to leadlined doors must use certified lead glass matching the door’s lead equivalent. Ordinary safety glass provides zero ionizingradiation attenuation. Impactresistant constructiongrade lead glass is mandatory for doorlite applications.

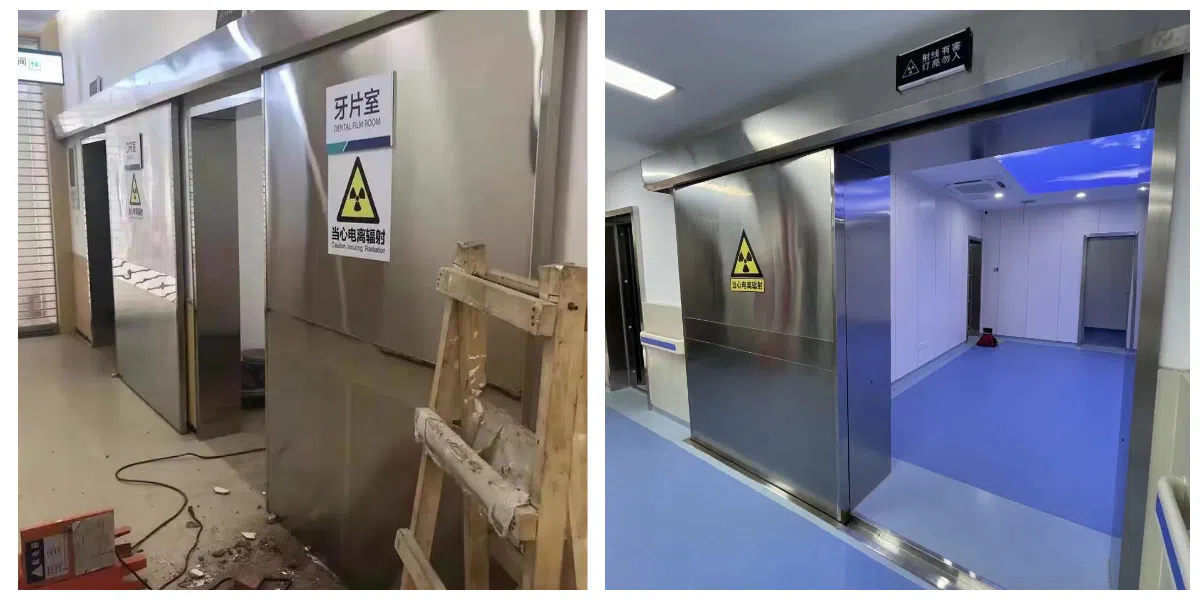

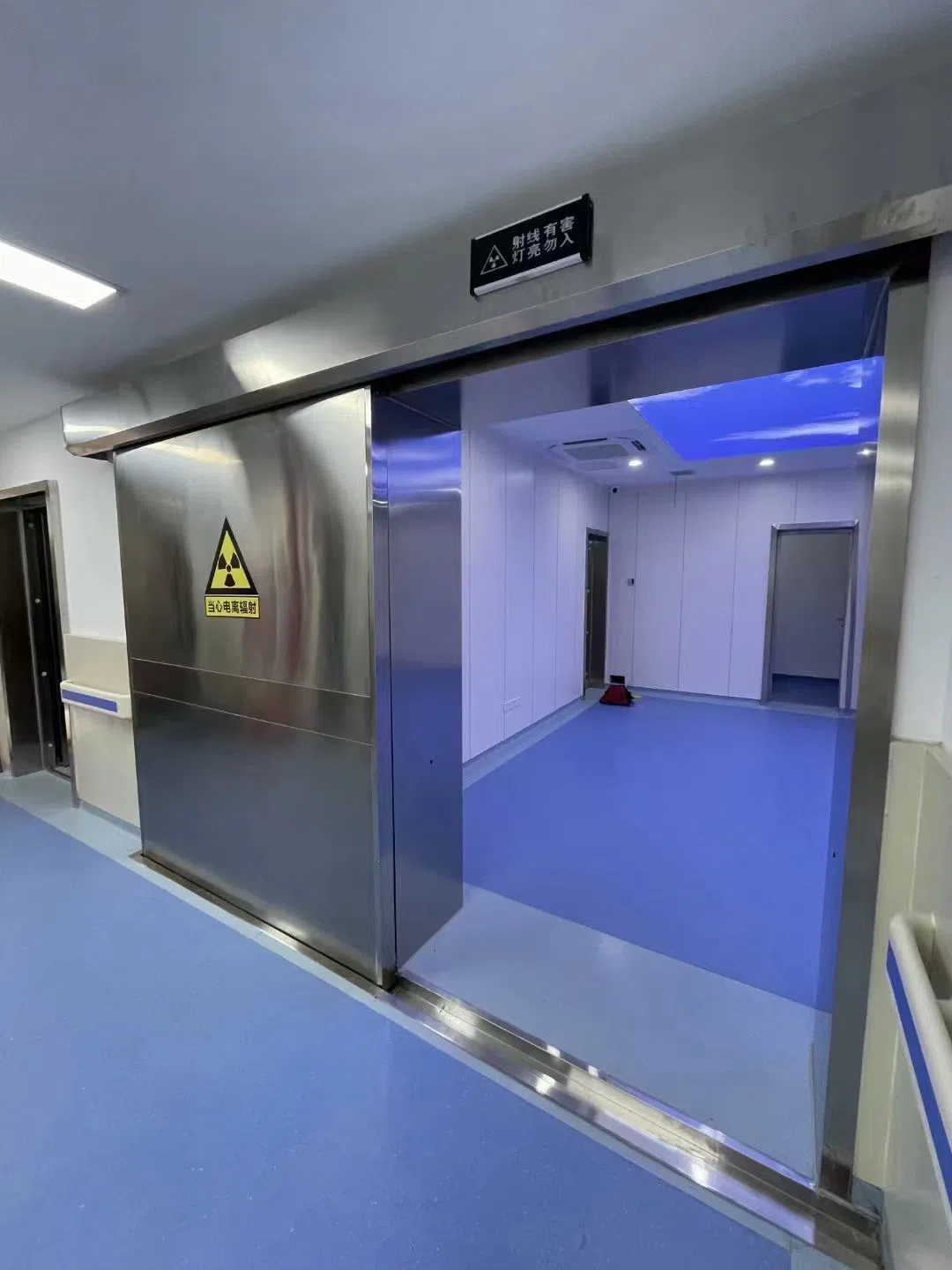

Both manual swing and automatic sliding leadlined doors are widely deployed across global medical projects. Swing doors suit smallvolume rooms such as dental Xray suites. Heavyduty automatic sliding leadlined doors are preferred for hightraffic CT, cathlab and interventional rooms, often equipped with safety interlock circuits and warning lamps.

Custom sizing is standard for international projects. Most overseas healthcare sites do not follow USstandard doorway dimensions. Manufacturers must fabricate doors against client drawings, delivering full material certificates and shieldingperformance test reports to satisfy import customs clearance and local regulatory acceptance.

General contractors and importers are advised to verify thirdparty test documentation before confirming orders. Products with unproven lead equivalency create major financial risk: dismantling and replacing installed leadlined doors is extremely costly and delays wholeproject handover.

For worldwide buyers sourcing leadlined shielding doors, prioritize suppliers that can deliver custom dimensions, matching leadlined frames, certified leadglass vision panels and complete compliance documentation.
